Sketch the Output of PD Controller
Question

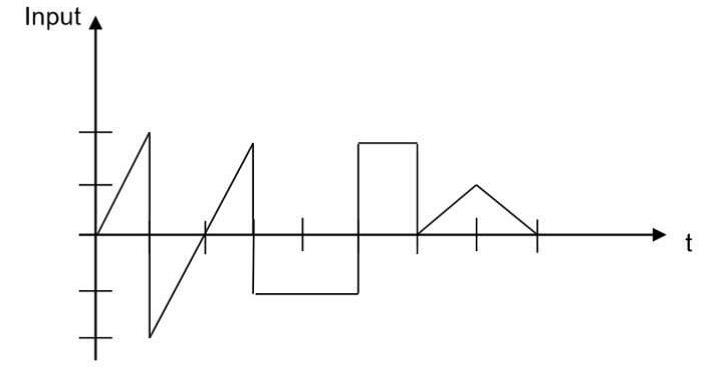

The following signal occurs at the input of an open loop PD controller:
Sketch the general shapes (no numeral values) of the following outputs:
- P controller
- D controller
- PD controller (combined)
Summary
This question belongs to control systems and discusses open loop PD controller and to sketch the general shapes of output of the controller.
Total word count: 66
