rotational speed in a harmonic motion
Question

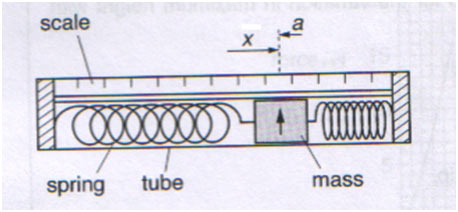

Fig shows amass attached to two springs. The mass moves along a horizontal tube with one spring stretched and the other compressed. A narrow marked on the mass indicates its position on a scale. Fig1 shows the situation when mass is displaced through a distance x from its equilibrium position. The mass is experiencing an acceleration a in the direction shown. Fig2 shows a graph of the magnitude of the acceleration against the displacement x.
The mass-spring system of fig 1 can be used as a device to measure acceleration, called an accelerometer. It is mounted on a rotating test rig, used to simulate large g-forces or astronauts. fig 3 shows the plan view of a long beam rotating about its axis A with the astronaut seated at end B, acing towards A. The accelerometer is parallel to the beam and is fixed under the seat 10m rom A
Fig-1
Fig-2
Fig- 3
Calculate the speed v of rotation of the astronaut when the deflection is f50mm.
Summary : rotational speed in a harmonic motion due to mass
Download Full Solution
