Questions on Oil Refinery Process where Sulfur Compounds Need to be Separated from the Crude Oil
Question
You are working in an oil refinery and to meet air quality standards you must remove trace sulfur compounds that come along with the crude oil. These H2S and SO2. A process has been suggested to convert these compounds into elemental sulfur and water using the following reaction:
2H2S(g) + SO2(g) → 3S(s) + 2H2O(g)

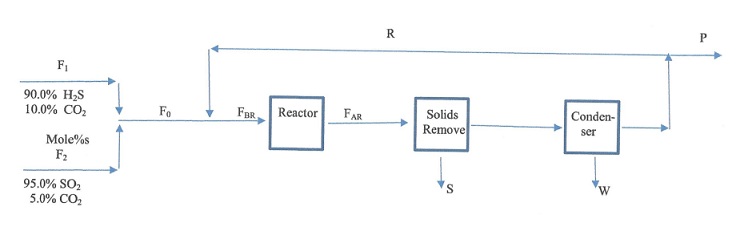

A drawing of the process is given below. You have two input streams F1 and F2 which are combined together and this new stream, F0 is connected to the recycle stream R. The two feed streams are fed at a stoichiometric ratio as shown above but contain a fair amount of CO2 as is shown. The solid sulfur is completely removed and the condenser completely removes the water. The gas stream leaving the condenser is split into a purge stream and recycle stream.
a. The flow in F1 is 100.00 lb-moles/sec.
b. The overall process conversion of H2S is 95% (actually removed).
c. The recycle to feed ratio is R/F0 = 15.0
1. What is the purpose of the purge stream?
2. What is the individual and total flow rates of F0?
3. What are the flow rates of R, S and W?
4. What percentage of gas leaving the condenser is purged?
5. What is the single pass conversion of the reactor?
Summary
The question belongs to Chemical Engineering and it is about an oil refinery where trace sulfur compounds such as H2S and SO2 have to be removed from crude oil. The questions deal with the need for purge stream, the individual flow rates, the percentage of gas leaving the condenser and single pass conversion of the reactor.
Note: The solution is in handwritten format.
