Determination of Transfer Function, Proportional Gain Constant and Integral Time Constant
Question

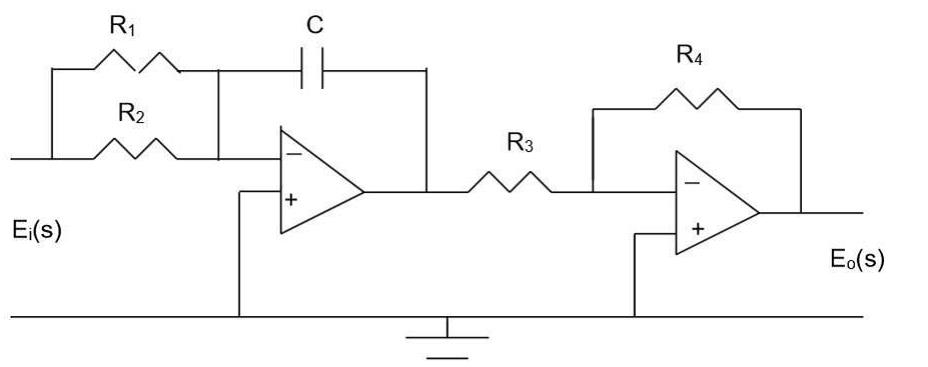

For the following circuit with the operational amplifiers:
- Use the impedance approach to find an expression for a transfer function: E0(S) / Ei(S)
- Determine the transfer function when: R1 = R2 = R3 = 100kΩ and R4 = 200kΩ, C = 20µF.
- Determine proportional gain constant, integral time constant and derivative time constant.
Summary
This question belongs to control systems and discusses about circuit with the operational amplifiers.
