Analyze the Adiabatic CSTR Liquid Phase Reaction

Question

An adiabatic CSTR is used for the following elementary, liquid phase reaction:

1.    A + B → C

A side reaction between B and C is also possible

2.    B + C → D

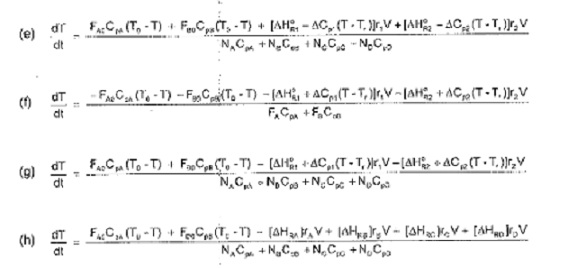

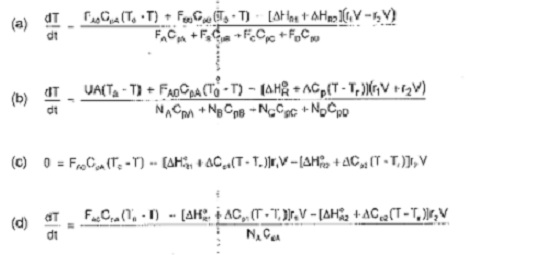

The reactor initially contains pure A and then a mixture of A and B is fed at a constant rate. Which of the following is the correct energy balance for this system during startup?

Summary

The short answer question belongs to Chemical Engineering and the question is about adiabatic CSTR for a liquid phase reaction where two compounds are introduced into the reaction producing a 3rd compound. The 3rd compound reacts with the 2nd compound. The correct energy balance is to be calculated.
