Maximum Value of Rload That Keeps Transistors in Saturation Region

$9.00$4.001293 reads

Question

Current Mirror Problem

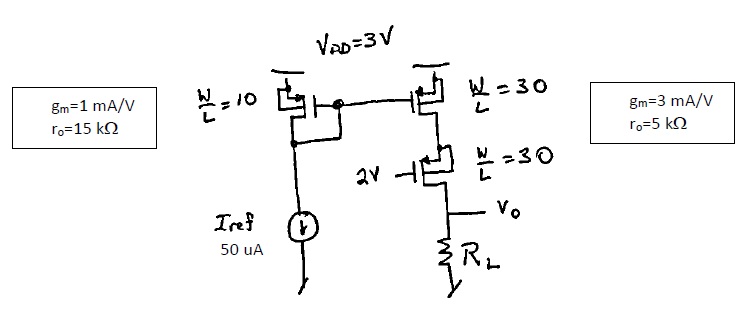

  1. Find the maximum value for Rload which keeps all transistors in saturation region. Assume |Vt|=0.5 V and Veff=0.2 V for all transistors, with the gm and ro values as marked. λ = 0.1 V
  2. Calculate the value of Vout for this value of Rload.

Electronics

Summary

This question belongs to electronics engineering and discusses about current mirror problem.
