Calculate the Flow rate of Hydrocarbon Stream
$5.50$3.502277 reads
Question

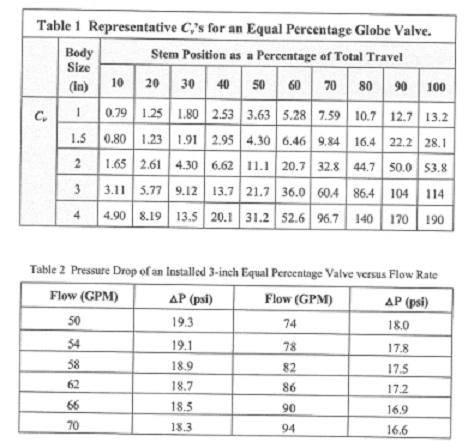

Calculate the flow rate in gpm of a hydrocarbon stream (specific gravity equal to 0.65) though a 3-inch equal percentage valve that is 40% open based on stem position for the Cv given in Table 1 and the installed pressure drop in table 2.
Summary
The question belongs to Mechanical Engineering and it is about calculating the flow rate in gpm of a hydrocarbon stream through a 3 inch equal percentage valve at 40% open based on stem position. The whole calculation has been given in the solution in detail.
Total Word Count 100
